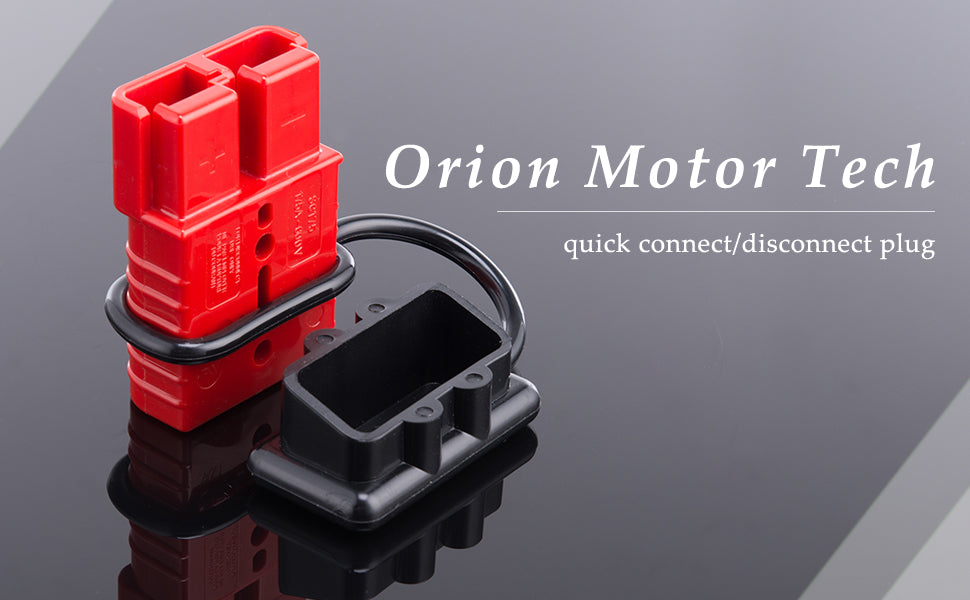

2pc 2-4 Gauge Battery Quick Connect/Disconnect Wire Harness Plug Kit, 12-36V DC, 175A

Regular price
$14.49
Sale price
$14.49
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

Features:

  • 175A CONNECTOR: For 12-volt to 36-volt DC power supply. 2 - 4 gauge wire connectors with 0.35" terminal pin diameter. One-way connection with plus and minus signs prevent accidental reverse polarity.
  • CONNECTOR DIMENSIONS: 3 1/8" L x 2 1/8" W x 1" H
  • CONNECTED SET DIMENSIONS: 5 1/4" L x 2 1/8" W x 1" H
  • QUICK & EASY: These quick connect/disconnect battery wire connectors replace standard clamp ends on your battery charger. Easy plug pull-apart and push-together action. Rubberized plastic end caps for heavy-duty protection.
  • SECURE PERFORMANCE: Provides a safe and reliable power source on cars, trucks, and RVs to hookup winches, tow and dump trailers, audio equipment, solar panel systems, auxiliary batteries, and other electrical devices.
Quick Connect Disconnect Plug Kit
Gauge Battery Quick Plug Gauge Battery Quick Connect Disconnect Wire Harness Plug Bottom

Model:

  • SC175

Connector Dimension:

  • 3 1/8" long x 2 1/8" wide x 1" thick

Connected Set Dimensions:

  • 5 1/4” long x 2 1/8” wide x 1” thick
Gauge Battery Quick Connect Disconnect Wire Diameter Gauge Battery Quick Connect Disconnect Wire Operating Temperature

Operating Temperature Range:

  • -4°F to 221°F / -20°C to 105°C

Medium Withstanding Voltage:

  • 2200DC

Wire Diameter:

  • 2AWG at most
Gauge Battery Quick Connect Disconnect Plug Battery Quick Connect Disconnect Wire Plug
  • Excellent Vibration Resistance
  • High Impact Resistance
  • Rubberized End Caps
  • 10,000x Connect/Disconnect Cycles
Gauge Battery Quick Connect Disconnect Plug Install Gauge Battery Quick Connect Disconnect Plug Use
