Quick Electrical Connector Wire Plug Set 4pcs

Handy Electrical Wire Connector Specification

4pc 2-4 Gauge Battery Quick Connect/Disconnect Wire Harness Plug Kit, 12-36V DC, 175A

Name: 4pc 2-4 Gauge Battery Quick Connect/Disconnect Wire Harness Plug Kit, 12-36V DC, 175A
Brand: OrionMotorTech
SKU: QCW-0175-04
Price: 27.99 USD
Availability: OutOfStock

Out of stock

$27.99

Product variants

Use code "NEWLOOK15" to get 15% off everything

Warranty & Support

Returnable 30-Day
Warranty 1-Year
Shipping Shipping fee will be calculated at checkout

Helpful documents

SKU QCW-0175-04

Questions about this product?

Get personalized answers from our experts.

Our product specialists will contact you within 1 business day to provide professional assistance.

Submit your question here

Features:

Wire Connector Pack: This handy electrical wire connection set from OMT includes 4 clearly marked quick connect plugs that let you patch and disconnect 2, 3, or 4 gauge (0.2"-0.25") wire pathways from 12V, 24V, or 36V batteries, supporting currents up to 175 amps.

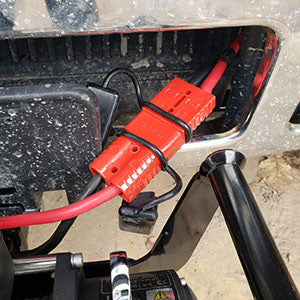

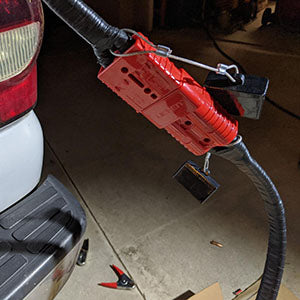

Wide Application: Our versatile weatherproof QC plugs offer a simple, convenient way to handle direct power connections to car batteries; truck, ATV, and RV winches, lifts, and cranes; and trolling and outboard motors on boats and watercraft, as well as home and industrial applications like lathes, chargers, and power inverters.
Built To Last: Each wire harness's unibody polycarbonate housing provides superior resistance to wear, corrosion, water, and heat for its full service life of over 10,000 connections; the 8 copper terminal pins are silver plated to minimize resistance and maximize stability and dependability; and the attached boot caps keep debris out between uses.
Easy To Use: These quick connectors provide built-in texturing and polarity marks for sure grip and easy use; their genderless design attaches & detaches quickly and smoothly; and use is as easy as stripping the ends of your wires, fitting them into the terminals, and securing them with a crimping tool.
Satisfaction Guaranteed: Order this reliable quick connecting and disconnecting plug kit with your peace of mind assured thanks to its 1 year warranty and Orion Motor Tech's friendly 24/7 customer service; order it today at no risk and enjoy hassle-free wiring for years to come!

Orion Motor Tech's wire harness connector set includes 4 quick-connect plugs that work with 2 to 4 AWG wires, permitting quick and easy electrical connection (and disconnection) of winches, cranes, lathes, trolling motors, battery chargers, power inverters, and many other electrical devices that require high levels of current. Durable materials, genderless design, and easy setup make sure they'll serve you well for years to come!

2–4 Gauge Wire Connector Kit

Specifications

Material: Polycarbonate, Copper, Silver, Rubber, Steel
Max. Current: 175A
Voltage Range: 12–36V
Wire Size Range: 2–4 AWG (⅕–¼ in.)
Terminal Pin Width: 0.35 in.

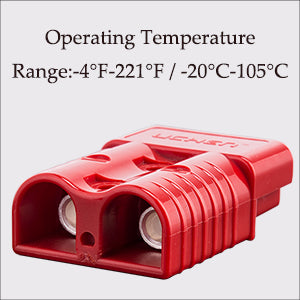

Operating Temperature Range: −4 to 221°F
Single Plug Dimensions: 3.1 × 2.1 × 1 in.
Paired Plug Dimensions: 5.3 × 2.1 × 1 in

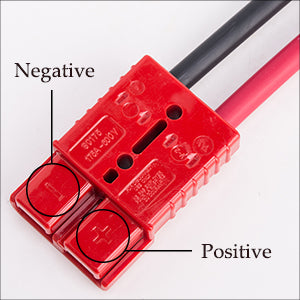

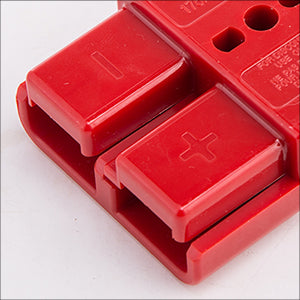

The polarity marks on the shell help with proper wiring, keeping installation straight-forward and simple.	The striped texturing on both sides of the plugs creates helpful traction to ensure a firm grip every time.	The sturdy one-piece polycarbonate housing of each wire connector provides superior resistance to wear, corrosion, moisture, and heat.


Each connector has an internal stainless steel spring to hold its electrical contacts in place, providing reliable service through 10,000+ separate connections.	The 8 copper pin terminals are silver plated to minimize electrical resistance while offering exceptional durability and stability.	Rubber boot caps come included to protect your wire harness plugs from dust and debris between uses.

Package List

4 × Quick Connect Plugs
8 × Pin Terminals
4 × Dust Covers

Absent instructions

Why is it most all China made products that require installation have NO INSTRUCTIONS??
THIS PRODUCT IS NOW UNUSABLE because the pins were crimped upside down.....I think....no instructions! Possibly if I had 4 spare pins, & reverse the direction of insertion, it might work!!!

Sun Visor Grey Passenger Side for 07-11 Toyota Camry with Sunroof and Light

Automotive EVAP Smoke Machine with Pressure Gauge 0.35cfm Flow Meter Mineral Oil Airbag,Smoke Machine for Cars

Dope product

First time rebuilding an old motorcycle and it's been turning in to an accumulation of "I need what tool?" And this product was easy to use and handle. Love it.

Nice product

Nice product. Very good quality.
