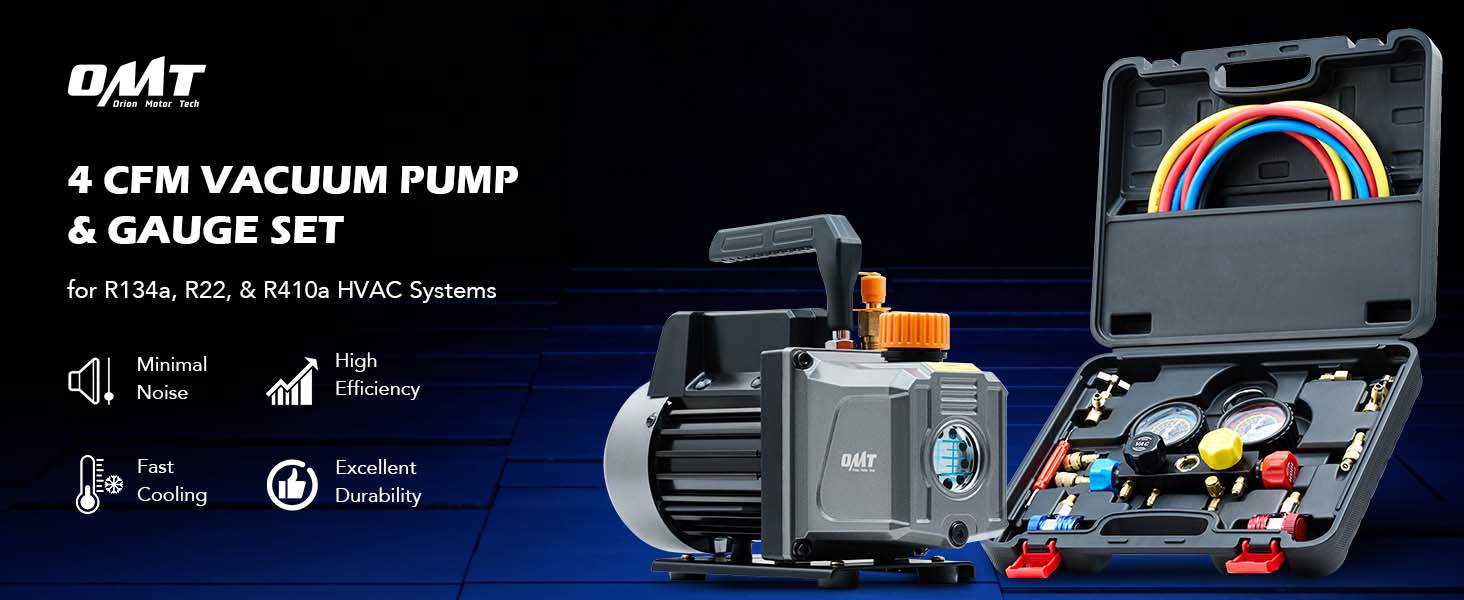

AC Vacuum Pump & Manifold Gauge Kit, 4 CFM 1/3 HP for Automotive HVAC Systems

In stock
Regular price $149.99
Regular price $164.99 -9% Sale price $149.99
Size

Warranty & Support

  • SKU VPH-BN0B-OG
  • Returnable 30-Day
  • Warranty 1-Year
  • Shipping Free
  • User Manual Download

Specification

  • Material: Aluminum Alloy, Steel, Copper, Rubber, Plastic
  • Rated Power: 1/3 hp (248W)
  • Flow Rate (FAD): 4 cfm (6.8 m3/h)
  • Ultimate Vacuum: 37.5 Microns (5 Pa)
  • Low-Pressure Gauge Range: -15 to 550 psi (-1 to 38 bar)
  • High-Pressure Gauge Range: -15 to 750 psi (-1 to 52 bar)
  • Gauge Accuracy: ±1.6%
  • Compatible Refrigerants: R134a, R22, R410a
  • Oil Capacity: 0.26 qt. (250 mL)
  • Hose Length: 5 ft. (1.5 m) ea.
  • Hose Working Pressure: 800 psi (55 bar)
  • Hose Max. Pressure: 4000 psi (275 bar)

Package List

  • 1x Vacuum Pump, 1x Manifold Gauge Set, 1x R134a Self-Sealing Can Tap, 1x R134a Puncture Can Tap
  • 1x Leak Detector, 1x Evacuation Hose, 1x Evacuation Hose, 1x Low-Pressure Hose, 1x High-Pressure Hose
  • 1x Low-Pressure Quick Coupler, 1x Can Tap Adapter (1/2" to 1/4"), 1x Vacuum Adapter (1/4" to 3/8")
  • 2x Angled Adapters (1/4" to 5/16"), 1x Vacuum Pump Oil, 1x Valve Core Wrench, 1x Pair of Work Gloves
  • 1x Teflon Tape, 1x Storage Bag, 1x Storage Case, 1x Instruction Manual

Ready to buy or need advice?

We're here to help! Our sales team offers personalized consultations, and expert advice to help you make the right choice.

Get in Touch Today

About this item

  • Auto AC Service Set: Orion Motor Tech's auto AC vacuum pump kit includes a powerful 1/3 hp vacuum pump, a 4-way manifold gauge, a leak detector, R134a can taps, R134a quick couplers, R410a adapters, vacuum oil, and 4 hoses for most AC repair works
  • Efficient Vacuum Pump: Featuring an all-copper motor, this vacuum pump ensures efficient evacuation at a 4 cfm flow rate. Its aluminum alloy casing effectively dissipates heat, resists corrosion, while brass-fitted tethered safety caps prevent oil leaks
  • High Accuracy Gauge Set: The AC manifold gauge provides precise real-time monitoring of your coolant's condition; the color-coded charging hoses are constructed with four layers to withstand pressures up to 800 psi (with a burst pressure of 4000 psi)
  • User-Friendly Designs: Efficiently manage heat with the built-in cooling fan, monitor oil levels easily with the sight glass, and ensure swift oil emptying through the bottom drain valve. Includes 0.26 qt. of vacuum oil for added convenience
  • Wide Application: This A/C vacuum pump kit is compatible with various refrigerants, including R134a, R22, and R410a, making it perfect for both indoor and auto HVAC systems. Stay organized during storage and transport with the durable case and bag

Specification

  • Material: Aluminum Alloy, Steel, Copper, Rubber, Plastic
  • Rated Power: 1/3 hp (248W)
  • Flow Rate (FAD): 4 cfm (6.8 m3/h)
  • Ultimate Vacuum: 37.5 Microns (5 Pa)
  • Low-Pressure Gauge Range: -15 to 550 psi (-1 to 38 bar)
  • High-Pressure Gauge Range: -15 to 750 psi (-1 to 52 bar)
  • Gauge Accuracy: ±1.6%
  • Compatible Refrigerants: R134a, R22, R410a
  • Oil Capacity: 0.26 qt. (250 mL)
  • Hose Length: 5 ft. (1.5 m) ea.
  • Hose Working Pressure: 800 psi (55 bar)
  • Hose Max. Pressure: 4000 psi (275 bar)

Package List

  • 1x Vacuum Pump, 1x Manifold Gauge Set, 1x R134a Self-Sealing Can Tap, 1x R134a Puncture Can Tap
  • 1x Leak Detector, 1x Evacuation Hose, 1x Evacuation Hose, 1x Low-Pressure Hose, 1x High-Pressure Hose
  • 1x Low-Pressure Quick Coupler, 1x Can Tap Adapter (1/2" to 1/4"), 1x Vacuum Adapter (1/4" to 3/8")
  • 2x Angled Adapters (1/4" to 5/16"), 1x Vacuum Pump Oil, 1x Valve Core Wrench, 1x Pair of Work Gloves
  • 1x Teflon Tape, 1x Storage Bag, 1x Storage Case, 1x Instruction Manual
