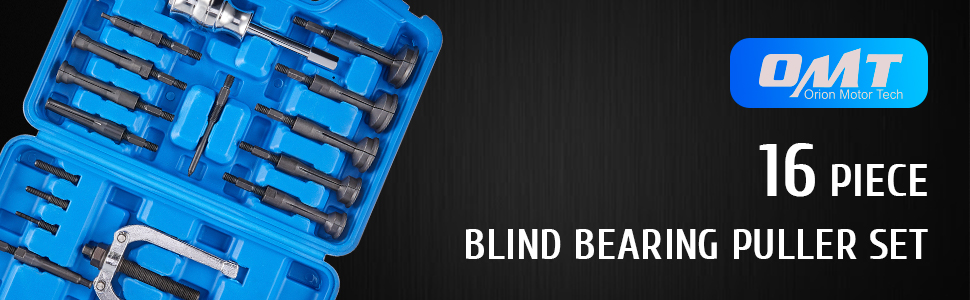

Blind Bearing Puller Set with Slide Hammer Counterstay Adapters Collets, 16-Piece

Regular price
$63.99
Sale price
$63.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

Features:

  • 16-PIECE SET: This blind bearing puller set by Orion Motor Tech includes a slide hammer, counterstay puller, spare pin bolt, 3 screw adapters, and 10 split collets to get all your work done on parts from 1/4 to 2-1/3 inch diameter (6-59 mm).
  • HEAVY-DUTY CONSTRUCTION: These wheel bearing removal tools are made from 45# steel forged and galvanized for long-term durability under even punishing use; the collets in particular are chrome moly steel to handle even the most stubborn blind bearings and bushings without trouble.
  • WIDE APPLICATION: This internal bearing puller set's expandable collets and threaded screw adapters remove tight and jammed axles, bearings, and bushings on a wide variety of vehicles without damaging the removed parts.
  • EASY TO USE: For most parts, just fit the appropriate collet, lock it into the inner race, and pull the slide hammer's weight back to easily knock out the bearing or bushing; for tighter or more delicate operation, the counterstay can be slowly tightened to more carefully extract the part.
  • BLOW-MOLDED CASE: The custom blow-molded case keeps everything organized and easy to carry or store as needed.

This 16-piece bearing removal set by Orion Motor Tech will pull even the most recalcitrant axles, wheel bearings, and bushings without damage thanks to its precision crafting and heavy-duty 45# and chromoly steel construction.

Blind Bearing Puller

Simply insert the appropriate collet; turn the nut to expand it until it takes good hold of the inner bearing race; and slide the hammer's weight towards the handle to knock out the bearing. For more delicate work, the galvanized U-shaped counterstay can be fixed and tightened to slowly pull your bearing out of place.

Bearing Race and Seal Puller Extractor Kit

This slide hammer puller set includes 3 metric screw adapters to fit M6, M8, and M10 parts and 10 collets that work with axles, bearings, and bushings from 1/4 to 2-1/3 inch diameter (6-59 mm). The reinforced blow-molded case keeps everything organized and easy to transport and store.

Specifications:

Material: 45# Steel, Chrome Molybdenum Steel, Zinc, Black Oxide

Case Dimensions: 18.6 x 14.3 x 4.1 in. (47.2x36.2x10.4 cm)

Sliding Hammer Fitment: M10x1.5 Screw Sleeve

Counterstay Fitment: M16 Screw Bar, M10x1.5 Screw, 12mm Hexagon Head

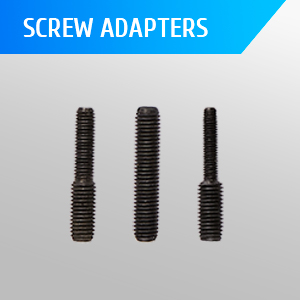

Screw Adaptors: M10x1.5, M10x1.5 to M8x1.25, M10x1.5 to M6x1

Split Collets: 1/4 to 1/2 in. (6-13 mm), 2/5 to 2/3 in. (10-17 mm), 3/5 to 7/8 in. (15.5-22 mm), 7/8 to 1-1/8 in. (22-29 mm), 1-1/8 to 1-1/3 in. (28.5-35 mm), 1-2/5 to 1-1/2 in. (35.5-39 mm), 1-1/2 to 1-3/4 in. (38.5-45 mm), 1-3/4 to 1-9/10 in. (42.5-49 mm), 1-9/10 to 2-1/6 in. (48.5-55 mm), 2-1/10 to 2-1/3 in. (52.5-59 mm)

Total Weight: 14.3 lb. (6.5 kg)
