Double Acting Hydraulic Pump with 10 Quart Metal Reservoir Specifications

Double Acting Hydraulic Pump 12v Dump Trailer

DC - 12V Double Acting Hydraulic Pump Dump Trailer Unit Applications

Double Acting Hydraulic Pump 12VDC Dump Trailer Parameters

12 Volt Double Acting Hydraulic Pump 12v Dump Trailer

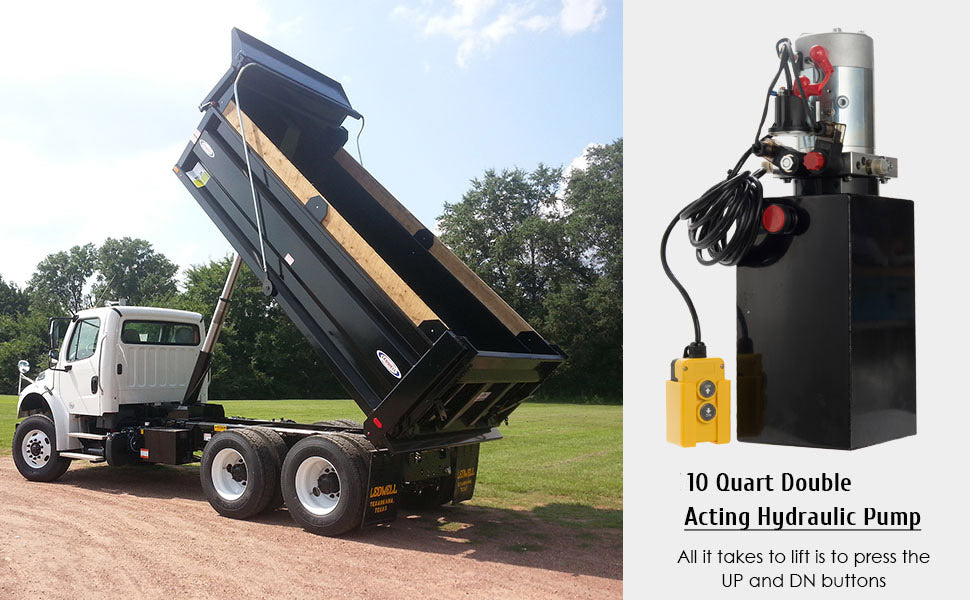

Double Acting Hydraulic Power Unit, 12V DC 10 Quart Hydraulic Pump

Name: Double Acting Hydraulic Power Unit, 12V DC 10 Quart Hydraulic Pump
Brand: OrionMotorTech
SKU: HPD-10LS-BK
Price: 249.99 USD
Availability: InStock

In stock

$249.99

~~$289.99~~ Sale $249.99

High quality starter ensures long service life and a fast starting each time. The standard duty 12V DC motor is built to last.

This hydraulic power unit with 10 Quart Metal Reservoir, featuring hand-held pendant with 20-foot removal cord and start solenoid.

Free Standard Shipping

Product variants

Use code "NEWLOOK15" to get 15% off everything

Warranty & Support

Returnable 30-Day
Warranty 1-Year
Shipping Free Shipping

Helpful documents

SKU HPD-10LS-BK
Instruction Download

Questions about this product?

Get personalized answers from our experts.

Our product specialists will contact you within 1 business day to provide professional assistance.

Submit your question here

Displacement of hydraulic pump: 0.825GPM (1.1ML/R, Applicable to all Double power unit for 3, 6, 8, 10 quart)
Pressure relief valve: 22MPA (3200 PSI Max. Relief Setting for Increased Lifting Power on A port) Rated speed: 2850R/MIN
Fuel tank: 10 quart
1500 PS Max Relief Setting on B port
SAE # 1 Port

Features:

A PERFECT REPLACEMENT PUMP, this dump trailer pump is used as a fuel supply device to control multiple sets of valve movement, a perfect replacement pump for 12VDC controlled hydraulic systems.
SIMPLE OPERATION, 12V hydraulic pump features hand-held pendant with 15 ft. removal cord and start solenoid.
WIDE APPLICATION, this hydraulic pump is widely applied to dump trailers, dump trucks, RV's, boat lifts, lift gates, tow trucks, wreckers, car haulers, agriculture equipment, snow plow equipment, etc.
ATTENTION, fluid choice shall be determined according to operating environment/temperature.

This hydraulic pump is widely applied to dump trailers, dump trucks, RV's, boat lifts, lift gates, tow trucks, wreckers, car haulers, agriculture equipment, snow plow equipment and a variety of other applications that require a powerful and compact hydraulic pump, a perfect replacement pump for 12VDC controlled hydraulic systems.


Double Acting Lifting & Lowering The dump trailer hydraulic pump is a double acting electric hydraulic pump. It provides rapid lifting and lowering with its super power and large capacities.	Excellent Oil Output This hydraulic power unit with 10 Quart Metal Reservoir, featuring hand-held pendant with 20-foot removal cord and start solenoid. Capable of quick oil output.	Extremely Durable High quality starter ensures long service life and a fast starting each time. The standard duty 12V DC motor is built to last. It can work excellent, not crack or leak even in a harsh environment.


Forklift	Lifting Platform	Dump Trailer

Specification:

Displacement of hydraulic pump: 0.825GPM (1.1ML/R, Applicable to all Double power unit for 3, 6, 8, 10 quart)
Pressure relief valve: 22MPA (3200 PSI Max. Relief Setting for Increased Lifting Power on A port) Rated speed: 2850R/MIN
Fuel tank: 10 quart
1500 PS Max Relief Setting on B port
SAE # 1 Port

Package List:

1 x 10 Quart Double Acting Hydraulic Pump
1 x English Manual
Several Related Accessories

Absent instructions

Why is it most all China made products that require installation have NO INSTRUCTIONS??
THIS PRODUCT IS NOW UNUSABLE because the pins were crimped upside down.....I think....no instructions! Possibly if I had 4 spare pins, & reverse the direction of insertion, it might work!!!

Sun Visor Grey Passenger Side for 07-11 Toyota Camry with Sunroof and Light

Automotive EVAP Smoke Machine with Pressure Gauge 0.35cfm Flow Meter Mineral Oil Airbag,Smoke Machine for Cars

Dope product

First time rebuilding an old motorcycle and it's been turning in to an accumulation of "I need what tool?" And this product was easy to use and handle. Love it.

Nice product

Nice product. Very good quality.
