Features:
-
SAFE AND SECURE: This Orion Motor Tech 75 in. automotive wheel spacer kit improves the cornering, stability, handling, and control of your vehicle by adding 4 inches to its axle track
-
PREMIUM MATERIAL: These wheel adapters are made from solid blocks of T6 aircraft-grade aluminum to keep them lightweight, highly durable, and strong; the 20 zinc coated M12x1.5 bolts are heat treated for superior strength and resistance to wear and tear
-
EASY INSTALLATION: These car accessories are precision machined with a 60 degree taper to offer exceptional safety and stability; their intuitive design and clear instructions guide simple and quick installation so you can add style and flair to your vehicle in no time!
-
1 YEAR WARRANTY: Increase your axle track, give your vehicle more traction on the road, and enjoy a slicker appearance with this sturdy wheel spacer set, your peace of mind assured by its strong warranty and Orion Motor Tech's usual friendly customer service
4 Pcs - 2" Thickness - 5x4.75"/5x120.7mm to 5x4.75"/5x120.7mm Bolt Pattern - 12x1.5 Studs - 3.429"/87.1mm Hub Bore

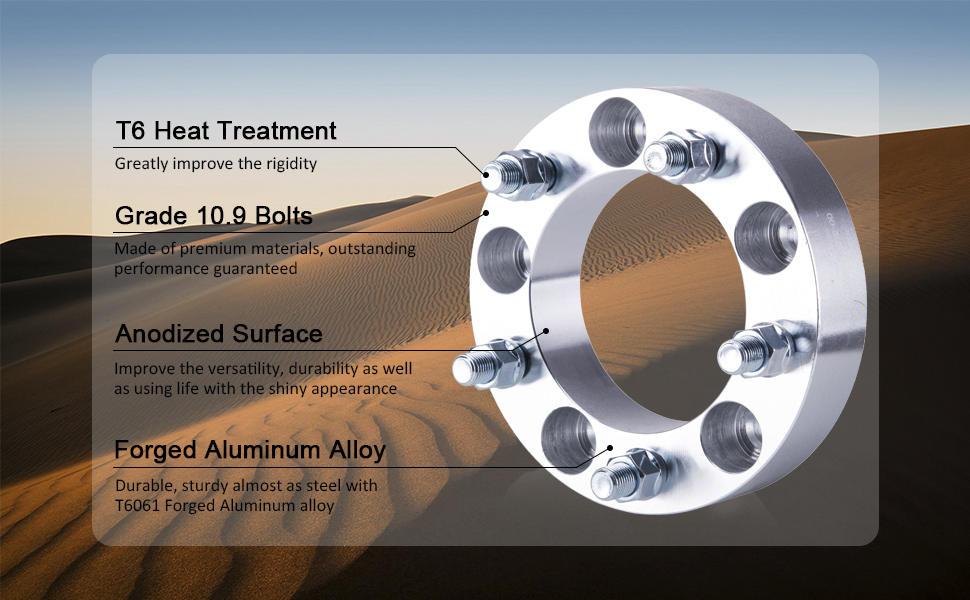

- Forged Aluminum Alloy: made of Aerospace Grade 6061-T6 Aluminum, ensuring the highest level of performance and durability for your automobile, T6 heat treatment can greatly improve the rigidity.
- Precisely Machined: CNC machined with 60 degree taper to precise specifications, heat treated and hardened heavy duty spacers and studs for safety.
- Grade 10.9 Bolts: Made of Premium materials, ensuring outstanding performance
- Increase Stability and Handling: widen your vehicle’s wheel base, increasing overall stability and providing you with better handling.
- Aggressive appearance, with the widened track base, your favorite vehicle will get a cooler look
Note:
- Before installing wheel spacer adapters, please make sure that you have bought the compatible wheel spacer adapters for your vehicle.
- You can easily check by placing one wheel spacer adapter onto the rim, screw in the nuts manually, if you can do that without feeling any restriction, then you have got the appropriate wheel spacer adapter for your vehicle.
- If your OEM studs are longer than the spacer's thickness, you need to shorten the lug studs by grinding them down or replacing with shorter ones.
Specifications
- Material: 6061-T6 Billet Aluminum, 35CrMo Steel, AISI A3 Steel
- Color: Silver
- Vehicle Bolt Pattern: 5 x 4.75 in. (5x120.7 mm)
- Tire Bolt Pattern: 5 x 4.75 in. (5x120.7 mm)
- Thread Size: M12x1.5
- Center Bore: 3.4 in. (87.1 mm)
- Thickness: 2 in. (50.8 mm)
- Package Weight: 16.4 lb. (7.5 kg)
- Warranty: 1 Year
Parts List
- 4 x Wheel Spacers
- 20 x Studs (M12x1.5)
- 1 x Tube of Adhesive
- 1 x Instructions
Fitment
To use this wheel adapter kit, make sure that your wheels' center bore is 3.4 in. (87.1 mm) or smaller; the bolt patterns on your vehicle and tires are 5x4.75" (5x120.7 mm); and your vehicle's current studs protrude less than 2 inches (50.8 mm). These rugged spacers are compatible with:
- Buick Rivera FWD (1979-1985)
- Cadillac Eldorado (1979-1985)
- Cadillac Seville (1976-1980)
- Cadillac XLR (2004-2009)
- Cadillac XLR-V (2004-2009)
- Chevrolet Camaro (1982-2002)
- Chevrolet Corvette All Series (1984-2015)
- Chevrolet S-10 Pickup 2WD-4WD (1982-2004)
- Chevrolet S-10 & S-15 Blazer (1983-1994)
- GMC Jimmy 2WD-4WD (1982-2002)
- GMC Sonoma 2WD (1991-2004)
- GMC Typhoon (1992-1993)
- Oldsmobile Bravada (1991-2001)
- Pontiac Firebird (1982-2002)
