Even high-quality wheel spacers can loosen over time if they're installed with dirty mating surfaces, the wrong torque, or an incorrect tightening sequence. These mistakes can lead to vibration, uneven wheel loading, damaged studs, and, in severe cases, wheel failure.
Fortunately, tightening wheel spacers isn't difficult when you follow the proper procedure. Whether you're installing universal bolt-on spacers or fitting wheel spacers on a 2021 Toyota Tacoma, the process comes down to using the correct tools, applying threadlocker where needed, and tightening every fastener to the manufacturer's torque specification in a star pattern.
How to Tighten Step-by-Step Guide
1. Preparation and Safety
- Secure the vehicle: Park on a level surface, engage the parking brake, and lift the car using a jack. Rest the vehicle securely on heavy-duty jack stands.
- Clean the hubs: Remove the wheel and thoroughly clean the mating surfaces of the vehicle hub and the back of the spacer. Rust or debris can cause the spacer to loosen over time.
2. Install the Spacer
- Apply threadlocker: Put a small amount of Red or Blue Threadlocker on the factory wheel studs or the spacer's mounting threads.

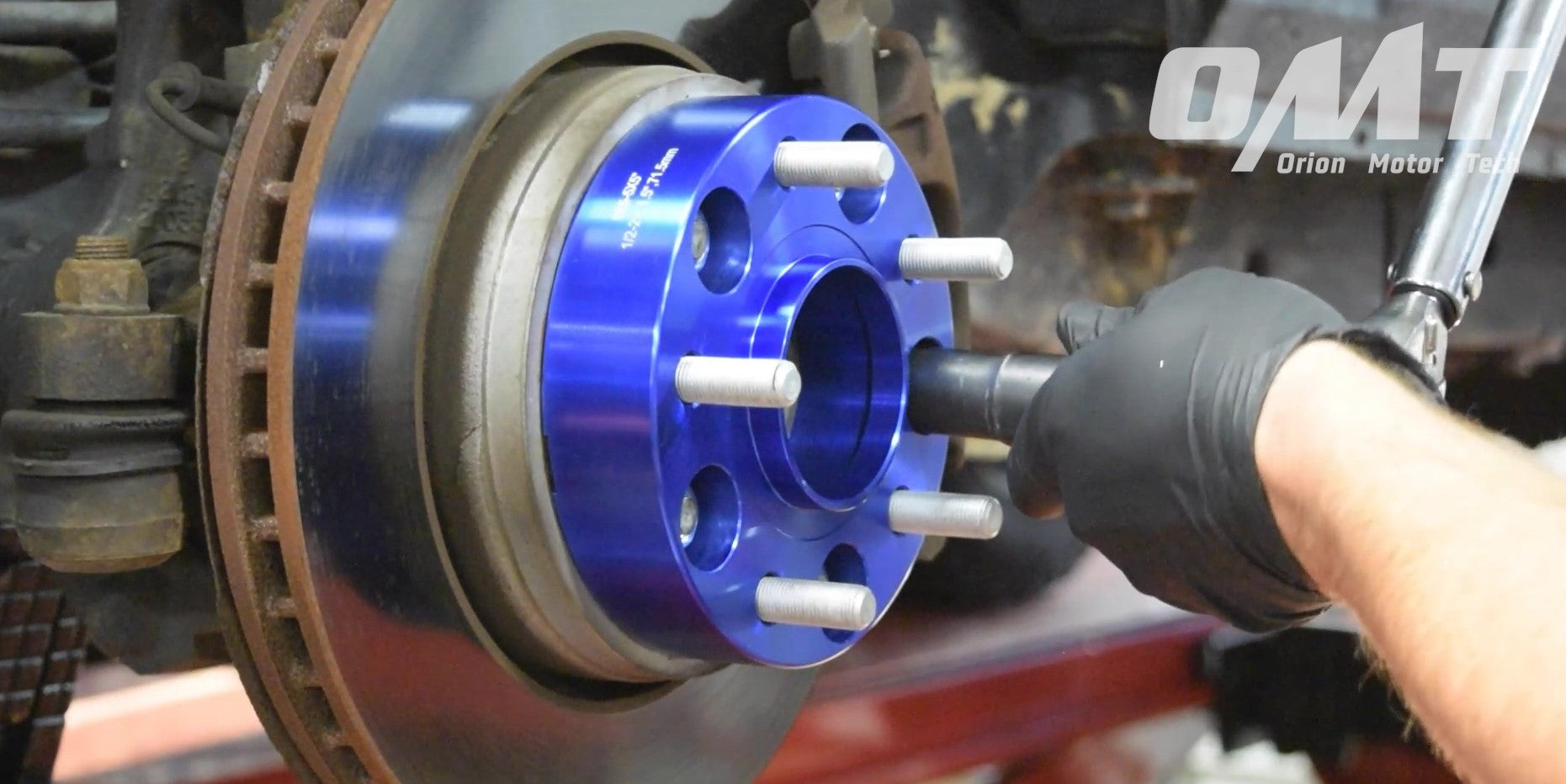

- Hand-tighten: Mount the spacer onto the hub and hand-tighten the provided lug nuts until the spacer sits completely flush.
- Lock the hub: If the hub spins while you try to tighten it, place a flathead screwdriver through the slots of the brake caliper into the rotor vents to lock the hub in place (ensure the parking brake is set if working on the rear).
3. Torque the Spacer
- Star pattern: Never tighten nuts in a circle. Work your way around in a criss-cross or star pattern to ensure the spacer sits perfectly flat and centered on the hub.
- Use a torque wrench: Always use a 1/2-inch drive click-type torque wrench. Do not rely on "feel" or an impact gun, as over-tightening can stretch studs and under-tightening can cause the spacer to back off over time. Consult your spacer manufacturer or vehicle manual for the exact ft-lbs specification.
- Recheck: Reinstall your wheel, lower the vehicle to the ground, and torque your wheel lug nuts to factory spec.
How to Tighten 2021 Toyota Tacoma Wheel Spacers
For a 2021 Toyota Tacoma installing bolt-on wheel spacers, the precise factory torque specification you need is 83 ft-lbs. Because bolt-on spacers attach directly to your truck's factory studs using a separate set of lug nuts, getting this exact number right is critical to protect your wheel assembly.
Tightening 2021 Toyota Tacoma Wheel Spacers: Step-by-Step
1. Torque the Spacers to the Hub
- The Spec: Tighten the inner lug nuts (the ones holding the spacer to the truck's factory studs) to 83 ft-lbs.
- The Threadlocker: Apply a few drops of Blue Loctite (removable) or the threadlocker provided by your spacer brand (such as Spidertrax) to the factory studs.
- The Pattern: Use a 6-lug criss-cross pattern to tighten the nuts gradually. Don't torque any single nut completely to 83 ft-lbs right away; tighten them all to roughly 40 ft-lbs first, then go back around and finish them at 83 ft-lbs.
2. Check Factory Stud Clearance
Before putting your wheel back on, make sure your vehicle's factory studs don't protrude past the outer face of the spacer.
If you're using smaller spacers (like 1-inch or 1.25-inch), the original studs might stick out slightly. Check the backside of your Tacoma wheels; they need pockets or cavities between the lug holes to accommodate any protruding stud metal. If the studs hit the flat back of the wheel, the wheel won't seat flush, which creates a serious driving hazard.
3. Torque the Wheels to the Spacers
- The Spec: Mount your wheel onto the new studs built into the spacer. Tighten your wheel's lug nuts to 83–88 ft-lbs.
Don't use threadlocker on these outer studs. You want to be able to remove your wheels easily for tire rotations or brake service.
Crucial Safety Advice For Tightening Wheel Spacers
1. Do The 50-Mile Retorque
Drive your truck for 50 to 100 miles, then pull the wheels off. Set your torque wrench to 80 ft-lbs and check the inner spacer nuts. If the wrench clicks without the nut moving, the spacer is secure. If a nut moves, remove it, clean off the old threadlocker, reapply fresh Loctite, and restart the process.
2. Avoid the Air Gun
Never let a tire shop use an impact gun on your spacers. Over-torquing on a Tacoma can stretch, weaken, or completely snap the factory M12 wheel studs.
Tips For Tightening 2021 Toyota Tacoma Wheel Spacers (Factory Wheels)
The Orion Motor Tech 1.25-inch 6x139.7mm hub-centric spacers with a 106mm center bore are a perfect physical fit for your 2021 Toyota Tacoma hub. Because you're pairing these specific 1.25-inch spacers with factory Toyota wheels, there are a couple of important safety and mechanical details to track during installation.
1. The Factory Stud Clearance Check (Most Critical Step)
A 1.25-inch (approximately 32mm) spacer is thin enough that your truck's original factory wheel studs will stick out past the face of the spacer by a few millimeters. Because you're using factory Toyota wheels, you have an advantage: almost all OEM 3rd-Gen Tacoma factory alloy wheels feature deep, open cavities (or "pockets") cast into the back of the wheel between the lug holes.
- So, before you finish torquing everything down, take one spacer, bolt it to the hub, and mock up the wheel.
- Push the wheel completely flush against the spacer, then wobble-test it by shaking the wheel. If the wheel rocks or shows a gap, the factory studs are too long and are hitting the back of the wheel.
- If there's a gap, you'll need to slightly trim the unthreaded tips of your truck's factory studs using a cutoff wheel so the wheel can mount completely flat.
- If it sits perfectly flush with zero play, you're good to go.
2. Ensure Factory Wheel Lug Nut Compatibility
Your factory Toyota wheels use a specific type of lug nut called a mag-seat (or shank-style) lug nut with a built-in flat washer.
- Inner nuts (spacer to truck): You must use the low-profile, conical (tapered) lug nuts that came inside the Orion Motor Tech box to attach the spacer to your truck's hub. Don't use your factory lug nuts here; they won't fit inside the recessed spacer holes.
- Outer nuts (wheel to spacer): Use your factory Toyota mag-seat lug nuts to bolt your factory wheels onto the spacer's new studs. Make sure you get at least 6.5 to 7 full turns of the lug nut before it tightens down to guarantee proper thread engagement.
3. Follow This Exact Torque Sequence for Your Setup
- Clean the hubs: Use a wire brush to scrub off any rust on your truck's hub and the back of your factory wheels. Debris will throw off your torque readings.
- Mount spacer: Apply a few drops of Blue Loctite to the truck's factory studs. Thread the Orion Motor Tech conical nuts on by hand.
- Torque spacers: Lock the rotor, and torque the nuts in a star pattern to 83 ft-lbs.
- Mount wheels: Slide your factory wheel onto the spacer studs. Thread your factory mag-seat lug nuts on by hand. Don't use Loctite here.
- Torque wheels: Lower the truck until the tires touch the ground just enough to hold them still. Torque the factory lug nuts in a star pattern to 83 ft-lbs.
Don't forget to pull the wheels off after 50 miles to check that those inner spacer nuts haven't loosened.
Final Thoughts on Tightening Wheel Spacers
Properly tightening wheel spacers comes down to three non-negotiables: clean mating surfaces, the correct threadlocker, and precise torque applied in a star pattern with a calibrated torque wrench- never a guess, and never an impact gun.
- For Tacoma owners specifically, 83 ft-lbs is your target number on both the inner spacer nuts and outer wheel nuts, but getting there gradually (40 ft-lbs first, then a final pass) makes all the difference in keeping the spacer seated evenly.
- Don't skip the stud clearance check or the 50-mile retorque; these two steps catch the most common (and most dangerous) installation mistakes before they become a problem on the road.
Done correctly, wheel spacers are a safe and reliable upgrade; done carelessly, they're one of the easiest ways to compromise your wheel assembly. You may also be interested in our complete guide to installing wheel spacers.
