Your car’s suspension system would be useless without one important component - a ball joint. These joints connect the steering knuckles to the control arms, allowing you to steer while also supporting the weight of your car. Without them, the steering would be nearly as smooth or efficient.
Yet, not many car drivers know a lot about these ball joints. For example, did you know that there are upper and lower ball joints, and that they aren’t the same?
At first, they might look the same, but there is a difference in how upper and lower ball joints work. So, when it comes to upper vs lower ball joints, what makes them so different?

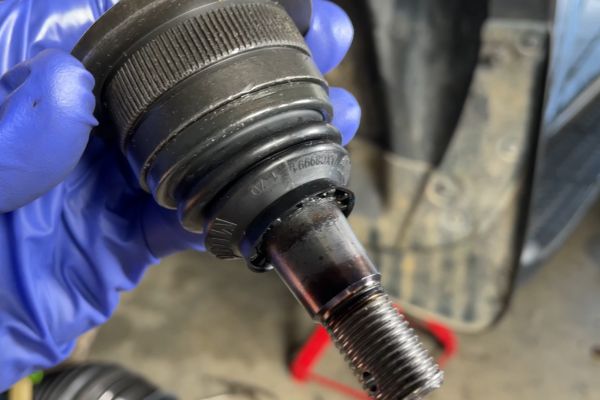

What is a Ball Joint?
Ball joints are components that connect the steering and suspension systems. They allow the wheels to move up and down while also moving left and right.
This is especially important when you’re driving on an uneven road, and you also need to steer your car.
Ball joints ensure that you can steer smoothly and safely. They give you more control and stability when driving. Ball joints are usually made of hardened steel and encased in a protective rubber boot filled with grease. This grease allows the joint to move freely, while the boot seals out dirt and moisture.
However, over time, the boost can wear down or crack, which will allow dirt, moisture, and other contaminants to enter the ball joint and damage it over time. A damaged ball joint can become loose, poorly aligned, and unsafe. It can also make clunking and other unusual noises.
Upper vs Lower Ball Joints: Key Differences
The key differences between upper and lower ball joints can be seen in where they are located (which control arm they connect to), how much load they can bear, how quickly they wear out, and how complex they are to install. Here are their main differences:
| Category | Upper Ball Joint | Lower Ball Joint |
|---|---|---|
| Location | Connects the upper control arm to the steering knuckle | Connects the lower control arm to the steering knuckle |
| Load-bearing | Carries less load; mainly acts as a steering pivot | Carries most of the vehicle’s weight; main load-bearing joint |
| Wear Pattern | Wears out more slowly due to a lighter load | Wears out faster because it supports most of the weight |
| Replacement Complexity | Often easier to replace (bolted or riveted in) | More complex, often pressed into the control arm |
Bad Ball Joint Symptoms: Upper vs Lower Ball Joints
Both upper and lower ball joints can get worn out over time, and there are some common signs that this has happened to ball joints in your car. Since lower ball joints carry more load and are more likely to wear out, their symptoms are usually more noticeable:
Bad Lower Ball Joints: Symptoms
- Clunking or knocking noises: A bad lower ball joint often moves excessively inside its socket. As a result, it makes clunking sounds when going over bumps, potholes, or uneven terrain.
- Steering wander or vibration: If your steering feels loose or drifts, the upper ball joint could be worn. When you’re driving at a high speed, you might feel vibrations and your wheel moving slightly out of alignment with the road.
- Uneven tire wear: Excessive tire wear on the inside or outside edges can signal a failing ball joint. The lower ball joint controls the vertical position of the wheel. When the ball joint gets worn out, it changes the wheel’s alignment angles, and it causes uneven tire wear.
- Sagging front suspension: This happens when the lower ball joint is severely worn out. It can even cause the wheel to lean inward. Eventually, if the problem is left ignored, the wheel may collapse or detach.
Upper Ball Joints: Symptoms
Upper ball joints can also get worn out over time, albeit at a slower pace. Here are the symptoms you should watch out for:
- Poor alignment: A bad upper joint can throw off your alignment, making the car pull to one side. This happens when a worn-out upper ball joint can no longer hold the steering knuckle firmly in place.
- Delayed response: With a worn upper ball joint, you may experience a delay between when you turn the steering wheel and when the vehicle actually responds.
- Popping or clicking noises: While bad lower ball joints cause clunking noises, bad upper ball joints usually cause popping or clicking noises instead. These noises are especially noticeable when you’re making sharp turns.
- Slow or incomplete self-centering: After completing a turn, the steering wheel should go back to its centered, straight-ahead position. However, if your upper ball joint is worn down, the steering wheel might not go back to its original position, or it might do it too slowly.
Keep in mind one thing. Even though these symptoms are usually specific to either lower or upper ball joints, they can appear in both cases.
For example, uneven tire wear, even though more specific to bad lower ball joints, can also point to worn upper ball joints. So, if you notice any of the abovementioned symptoms, it could point to issues with both upper and lower ball joints.
Ball Joint Removal Tools From OrionMotors
Once you figure out that there is an issue with your car’s ball joints, you will need to remove and replace them. To do that, you’ll need ball joint removal tools:
21pcs Ball Joint Removal Tool Kit for Most 2WD and 4WD Vehicles
With this tool kit, you can effortlessly remove and install ball joints, U-joints, and other press-fit parts on most 2WD and 4WD vehicles without having to remove the control arm. It is built from heavy-duty forged carbon steel with multiple adapters:
Conclusion
Learning the differences between upper vs lower ball joints isn’t just about being curious. This knowledge will help you ensure your car’s safety. Upper and lower ball joints serve similar, but still different purposes, which is why their potential issues might differ. In case you experience any issues with your ball joints, you can use the Orionmotors ball joint removal tool kit.
Explore more details on replacing control arms and ball joints.
