When it comes to choosing a ball joint separator for your truck, bigger is not always better. Your goal should be to choose a tool that fits securely around the ball joint stud and steering or suspension component without being excessively large or too small.
Getting the right size is very important: a separator that is too small will not fit around the joint, and one that is too large will keep slipping, apply the force inefficiently, or become difficult to position in tight spaces.
A properly sized separator should fit the ball joint assembly comfortably, apply force directly where needed, separate the joint without damaging surrounding parts, and provide enough clearance for the suspension components.
The Most Popular Ball Joint Separator Size
If you're working on a typical half-ton pickup truck, the most common separator opening is usually around 7/8 inch to 1-1/8 inches. Use a universal adjustable scissor-type ball joint separator with a 3/4-inch (approx. 19mm) fork opening.
This size accommodates the standard tapered studs found on almost all modern domestic and import sedans, SUVs, and light trucks, including:
- Ford F-150 models
- Chevrolet Silverado 1500 models
- GMC Sierra 1500 models
- Ram 1500 models
- Toyota Tundra models
Because most light-duty trucks use similarly sized ball joints that fall within this dimensional range. Manufacturers may vary slightly, but suspension components on half-ton trucks tend to be relatively standardized.
As a result, many universal ball joint separator kits are designed around this size range. For the average truck owner, this is often the most likely size category needed.
Standard Joint Ball Separator Tool Sizing Guide For Different Trucks
| Truck Type | Typical Separator Size Range |
| Compact pickups | 3/4" to 1" |
| Midsize trucks | 7/8" to 1-1/8" |
| Half-ton trucks (1500 series) | 7/8" to 1-1/8" |
| Three-quarter-ton trucks (2500 series) | 1" to 1-1/4" |
| One-ton trucks (3500 series) | 1-1/8" to 1-3/8" |
| Heavy-duty commercial trucks | Often require specialty tools |
These size ranges in this table are not universal, but they provide a useful starting point when selecting a separator. For trucks that frequently tow, haul heavy loads, or use heavy-duty suspension packages, ball joints may be larger than those found on standard versions of the same vehicle.
1. Sedans, Crossovers, and Light SUVs
A 3/4-inch (19 mm to 22 mm) fork opening is the standard. The tool should ideally feature an adjustable height pivot allowing it to expand up to 2 inches (50 mm to 56 mm) vertically to clear the thickness of the steering knuckle.
2. Heavy Trucks and Off-Road Vehicles (e.g., 3/4-ton to 1-ton trucks)
These vehicles have thicker, beefier tapered studs. Standard 3/4-inch scissor separators will be too short or too narrow. You will need a heavy-duty truck-specific separator or a C-frame ball joint press kit with specialized adapter cups.
How to Know What Size Ball Joint Separator You Need
1. Measure the Ball Joint Stud Diameter
The first thing to consider is the diameter of the ball joint stud. Larger trucks generally use larger ball joints, while smaller trucks and SUVs often use smaller studs.
The opening of the separator must be large enough to fit around the stud and mounting area while still applying force effectively.
2. Measure Jaw Opening Width
Most ball joint separators are sized according to the width of their fork opening or jaw opening. This measurement determines whether the tool can fit between the ball joint and the steering knuckle or control arm. If the opening is too narrow, the tool won't fit. If it's too wide, it may not grip securely.
3. Consider the Available Clearance
Modern truck suspensions can be crowded. Before selecting a separator, consider how much room exists around the steering knuckle, the control arm, the brake components, and the axle shafts. Sometimes a theoretically correct size won't fit because surrounding components limit access.
4. The Vehicle’s Weight Class
Heavier trucks generally use larger suspension components. As truck size increases, ball joint dimensions often increase as well. This is why a separator that works perfectly on a midsize pickup may not fit a heavy-duty truck.
5. Check Manufacturer Specifications
Whenever possible, consult the factory service manuals, the suspension specifications, and ball joint replacement guides. These resources often indicate the recommended tool size or compatible separator type.
4 Important Tips for Choosing the Right Ball Joint Separator Size
1. Always Rent It For Free First
Instead of guessing the exact size and buying a tool you might use once, go to a local auto parts store (like AutoZone or O'Reilly Auto Parts) and use their loaner tool program. They will hand you a master kit containing multiple sizes for a refundable deposit.
2. Protect The Threads, Always
Leave the castle nut threaded upside down on the very tip of the ball joint stud flush with the top. This keeps the separator from slipping and ensures you do not mushroom or flatten the metal threads under extreme pressure.
3. Lubricate the tool
Always grease or oil the jackscrew threads of the separator before tightening it. This keeps the tool from galling, binding, or snapping under the load.
4. Pay Attention to The Tool Style of the Ball Joint Separator
Not all separators work the same way. The most common styles are pickle forks, scissor-type separators, screw-type separators, and puller-style separators. Even if two tools have the same opening size, one style may fit your truck better than another.
If you choose a pickle fork (wedge style), take note that an 11/16-inch fork is typically for tie rod ends, whereas a 15/16-inch fork is required for ball joints.
Creworks 5-in-1 Ball Joint Separator: High-Quality, Universal, and Best Fit For Most Trucks

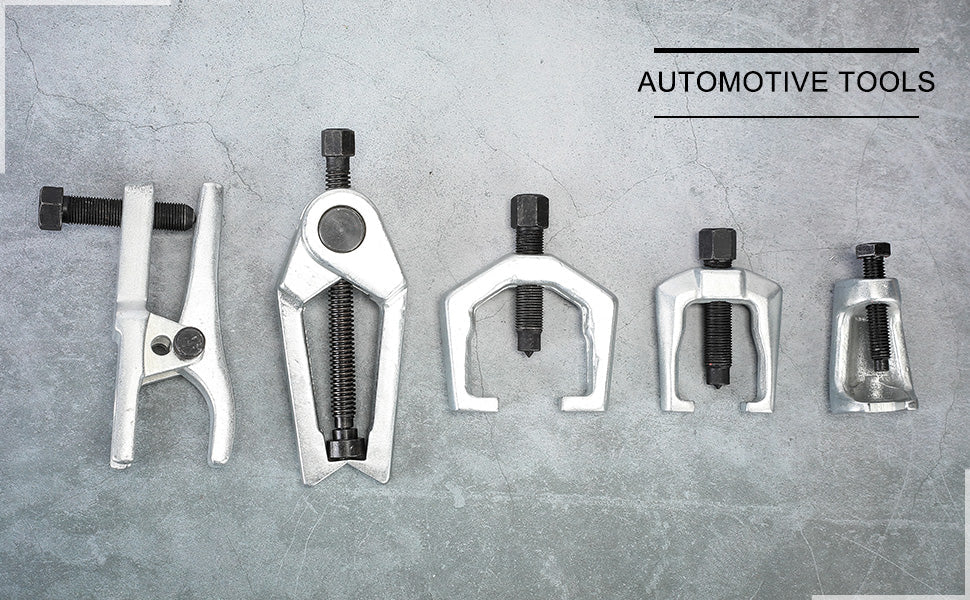

Creworks 5-in-1 ball joint separator contains 5 adjustable tools for a wide range of domestic and import vehicles. It comes with 1x ball joint separator, 1x tie rod and ball Joint remover, 1x conical Pitman arm puller, 1x Pitman arm and tie rod end puller, 1x Pitman arm puller, and 1x well-organized ABS case.
The versatile design allows this tool to be used as a pitman arm remover, ball joint separator, or tie rod end puller for many small, domestic rear-wheel-drive vehicles, import vehicles, and light trucks.
Made from tough and durable alloy, these tools can stand up to the toughest jobs, removing everything from the most stubborn ball joints, tie rod ends, to pitman arms.
More Buying Advice for Ball Joint Separators
-
Consider Adjustable Kits: Many mechanics prefer adjustable/universal separator kits because they cover multiple vehicle sizes. These kits can be especially useful if you work on several trucks or anticipate future suspension repairs.
-
Leave Room for Suspension Components: Don't focus solely on the ball joint itself. Consider surrounding components that may affect tool placement and operation.
-
Check Compatibility With Lifted Trucks: Lifted trucks sometimes use aftermarket suspension components that differ from factory dimensions. Always verify compatibility if your truck has been modified.
-
Choose Quality Over Price: Ball joint removal often requires significant force. A well-made separator is less likely to bend, slip, or fail during use. A durable tool can also be reused for future suspension repairs.
Final Thoughts on Ball Joint Separator Sizes
Choosing the right ball joint separator size comes down to matching the tool to your truck's ball joint dimensions and available working space. The goal is to find a separator that fits securely, applies force efficiently, and allows you to separate the joint without damaging surrounding components.
For most half-ton pickups, a separator with an opening in the 7/8-inch to 1-1/8-inch range is often the right starting point. However, factors such as truck size, suspension design, clearance, and ball joint dimensions should always be considered before making a final choice.
When in doubt, measure carefully and choose a quality separator that is designed for your specific application. A properly sized tool can make the difference between a frustrating repair and a straightforward ball joint replacement.
