When it comes to your car's air conditioning system, size does matter. Choosing the correct size vacuum pump can make a big difference in performance and efficiency; it ensures that the system is properly evacuated of air and moisture. This is very important because even a small amount of moisture in the refrigerant can cause corrosion, reduce cooling efficiency, and even lead to system failure.
So, what should you be looking at when choosing the right size vacuum pump for your car's AC? And is size the only factor that matters?
Understanding Vacuum Pump Sizes for Auto ACs.
In general, vacuum pumps for auto air conditioning can be categorized by their pumping speed, usually measured in cubic feet per minute (CFM) or liters per minute (LPM). Most modern automotive AC systems require pumps that can pull down to a deep vacuum in a matter of minutes.
Here is a basic guide to what you can expect from different pump sizes:
- Small capacity pumps usually offer between 1 and 2 CFM (or 28 to 56 LPM). These are typically used in smaller vehicles or in situations where the AC system has a lower total volume.
- Medium capacity pumps typically range from 2 to 4 CFM (or roughly 56 to 112 LPM). Many modern vehicles fall under this category as they tend to have more complex systems that require a higher level of evacuation.
- High-capacity pumps that exceed 4 CFM are usually reserved for larger vehicles or scenarios where the piping systems and the refrigerant charge are more substantial.
Consider the Ultimate Vacuum Pump Power as Well
Beyond the pumping speed, it is also necessary to consider the ultimate vacuum the pump can achieve. The ultimate vacuum is measured in terms of microns or torr and indicates how thoroughly the pump can remove contaminants.
For automotive purposes, a good vacuum pump should achieve an ultimate vacuum of under 100 microns. Achieving a deep vacuum is paramount for ensuring that the system is free from moisture and non-condensable gases before charging it with refrigerant.
Car AC Vacuum Pump Sizes at a Glance
| Parameter | Details/Recommendations |
| Pumping Speed | 1 to 2 CFM for small systems |
| 2 to 4 CFM for most mid-size systems | |
| 4+ CFM for larger or heavy-duty systems | |
| Ultimate Vacuum Level | Aim for below 100 microns |
| System Volume | Small (compact cars), Medium (sedans/SUVs) |
| Large (trucks, heavy-duty vehicles) |
This table is a quick reference to make sure that whichever pump you choose is on the same page as your car's AC system’s needs. Remember, this is a general guide, and specific requirements may vary from vehicle to vehicle.
Choosing the Right Vacuum Pump Size for Auto AC: Key Factors to Consider
Choosing a vacuum pump is not just a matter of picking the biggest or fastest one available. You need to consider several key factors that suit your specific vehicle and system setup. Here are some of the most important factors:
1. Check the System Volume and Refrigerant Charge
Every car air conditioning system has a certain capacity, and this is directly related to the refrigerant charge required. A larger system will naturally have more refrigerant and a higher overall volume.
When you are comparing vacuum pumps, consider the system volume. If you have a high-volume system, a vacuum pump with a higher pumping speed is generally more beneficial to achieve the desired vacuum level quickly.
2. Type of Refrigerant used
Different vehicles might use different types of refrigerant, and each refrigerant has its own boiling point and moisture sensitivity. Some refrigerants demand a very deep vacuum for optimal performance.
Check your car’s specifications, and ensure that the vacuum pump you select is capable of attaining the vacuum level required for that refrigerant type.
3. Check its Maximum Duration of Operation
How long the pump runs during the evacuation process can also affect your choice. Some vehicles might only need a brief run to evacuate the system, while others might require a longer cycle.
A pump with a lower capacity might be acceptable if the process does not demand a long continuous operation. However, if the AC system is particularly demanding, a pump that can pull a deep vacuum in a shorter time could save you a lot of time and energy in the long run.
4. Ensure Compatibility with Other Tools
Make sure the pump is compatible with the gauges and other diagnostic tools you use. Often, pumps come with fittings for connection with a manifold gauge set. Ensuring a good fit can prevent leaks and improve the efficiency of the evacuation process.
5. Environmental Considerations
Operating conditions such as temperature, humidity, and altitude can influence the performance of your vacuum pump. A pump that performs well in one climate may not work as efficiently in another. Look for models that have been tested under similar conditions to your own environment.
Being mindful of all these factors will help you find a pump that best fits your needs. Spending a little extra time at the selection stage can ensure that you have a reliable tool that not only performs the job effectively but also extends the lifespan of your AC system.
Choosing a Vacuum Pump for Car Air Conditioning: Other Factors That Matter
In addition to the core factors discussed about size and capacity, several other details can influence your final decision when picking a vacuum pump.
1. Build Quality and Durability
Any vacuum pump you choose must be built to last. Look for models made from high-quality materials that can withstand repeated use. A sturdy pump will not only last longer but also provide consistent performance over time.
It is always a good idea to read product reviews or ask for advice from professionals who have used the pump in similar conditions.
2. Ease of Use and Maintenance
An everyday user-friendly design goes a long way. The pump should be easy to set up, operate, and clean. Some models come with features such as quick-release fittings, easy-to-read gauges, and straightforward filter replacement.
This helps reduce downtime, especially if you are using the pump regularly. In addition, think about the availability of spare parts and customer support. The more accessible the maintenance process is, the smoother your operations will be.
3. Noise Level and Vibration
While not every mechanic considers noise as a critical factor, a quieter pump can create a better working environment, especially if the pump is used in enclosed spaces. Pumps that emit high levels of noise or vibration may indicate poor build quality or might simply be less comfortable to use over extended periods.
Therefore, consider models known for low noise and vibration, which will generally correlate with a more precise and efficient operation.
4. Portability and Storage
The size and weight of the pump can be crucial, especially if you need to move it around frequently or store it in a tight space. A compact and lightweight design is generally preferable if you are often on the move or work in a small garage. However, make sure that this portability does not compromise the pumping power required for your AC system.
5. Certification and Warranty
Certifications from recognized bodies can provide an extra assurance of a pump’s performance and safety standards. Additionally, check the warranty details. A longer warranty period is often a sign that the manufacturer is confident in the product’s durability.
Always keep the warranty documentation handy and ensure it covers those critical components, so you are not left out of pocket if something goes wrong.
AHM Vacuum Pumps For Car ACs

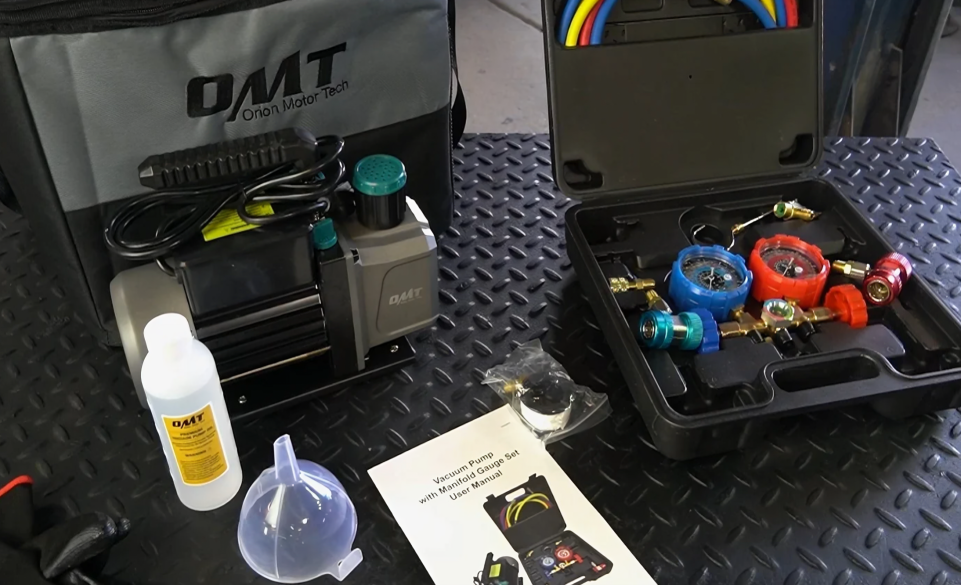

Orion Motor Tech's auto AC vacuum pump kits include a powerful 1/3 hp vacuum pump, a 4-way manifold gauge, a leak detector, R134a can taps, R134a quick couplers, R410a adapters, vacuum oil, and 4 hoses for most AC repair works
Featuring an all-copper motor, these vacuum pumps ensure efficient evacuation at a 4 cfm flow rate. They come with aluminum alloy casings that effectively dissipate heat, resist corrosion, while brass-fitted tethered safety caps prevent oil leaks
The AC manifold gauge provides precise real-time monitoring of your coolant's condition; the color-coded charging hoses are constructed with four layers to withstand pressures up to 800 psi (with a burst pressure of 4000 psi).
Concluding Thoughts
Spending time to ensure that you have the right pump is not just about the immediate job, but about safeguarding the longevity and efficiency of your AC system.
Remember, the right vacuum pump allows for better evacuation, resulting in a cleaner system and, ultimately, improved performance.
We hope this guide has helped clear up any confusion about what size vacuum pump you need for your auto air conditioning system. Happy troubleshooting and installation, and be sure to lean on trusted experts like those at Orionmotor whenever you need reliable materials and advice.
