If you’re replacing brake pads, one step you can’t skip is compressing the brake calliper piston. The good thing is that it is not complicated, especially if you are using a good brake calliper compressor tool, but doing it the wrong way can damage your calliper, brake lines, or even your braking performance. So the goal isn’t just to “push it back in”, it’s to do it safely and correctly.
How to Approach Compressing a Brake Calliper Tool
When compressing a brake calliper, your objective is simple: to retract the piston smoothly and evenly back into the calliper housing without causing damage. This process has to be done right for three main reasons:
- New brake pads are usually thicker, so you need more space in the caliper.
- The piston extends over time. So, as the pads wear down, it moves outward
Forcing it incorrectly can cause issues like damaged seals, uneven pressure, or sticking brakes. So you’re not just pushing the piston back, you’re resetting the system so it can function properly with new components.
How to Compress Brake Callipers With a Compressor Tool
Using a brake calliper compressor tool is by far the easiest and safest method to compress your brake callipers. It gives you controlled, even pressure, which reduces the risk of damaging anything.
The brake calliper compressor tool also applies even pressure across the piston, which reduces the chance of tilting or binding. Working with a tool also requires less physical effort and allows you to work on a wider range of calliper types.
Step-by-Step: Using a Brake Calliper Compressor Tool

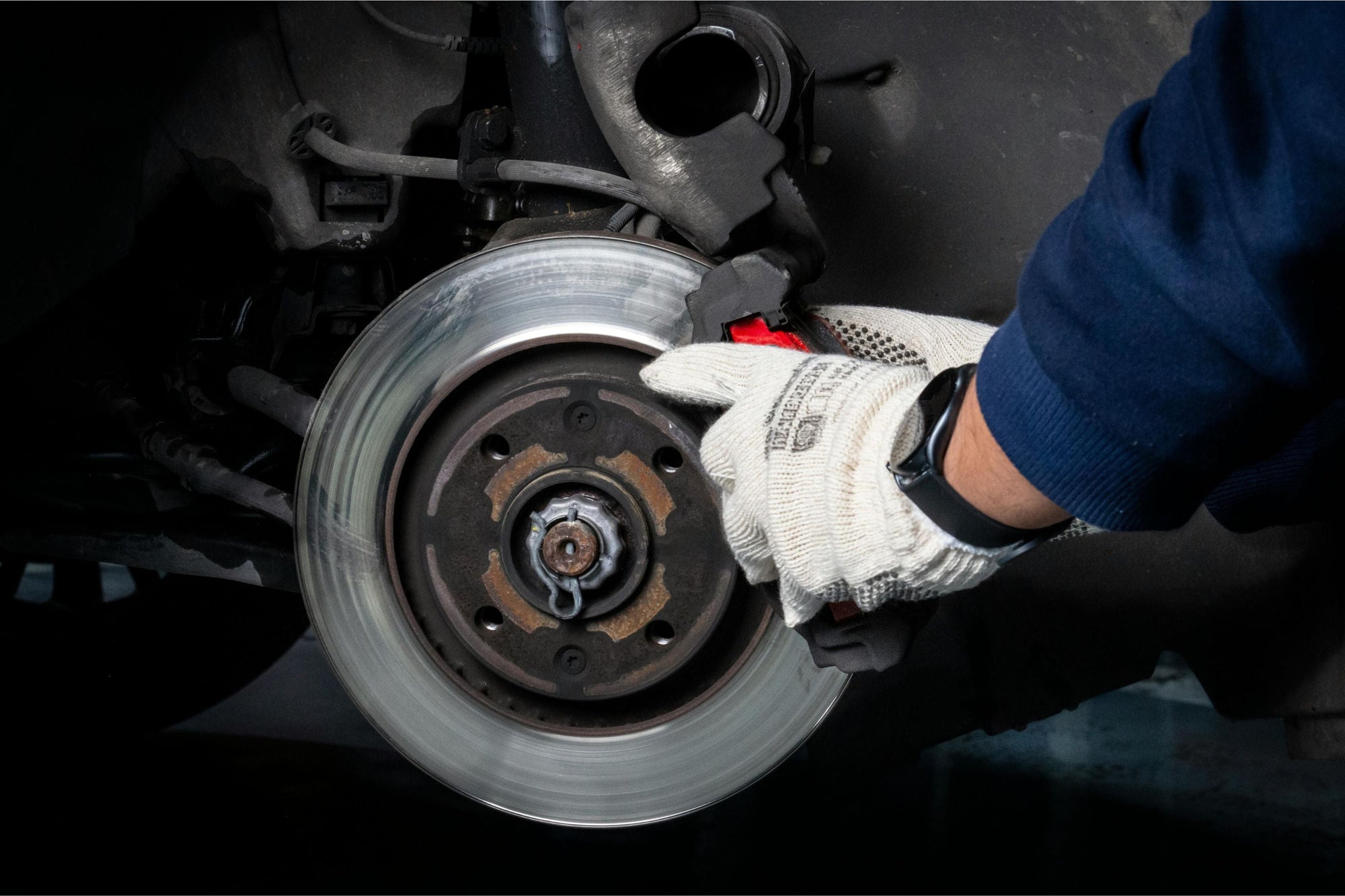

Step 1: Remove the Wheel and Access the Calliper
- Safely lift the car, remove the wheel, and locate the brake calliper.
- You need full access and visibility before applying any force.
Step 2: Remove the Brake Pads (if required)
- Take out the old brake pads from the caliper bracket.
- This gives you direct access to the piston and ensures nothing obstructs the compression process.
Step 3: Position the Compressor Tool
- Place the tool between the calliper body and the piston (or where the pads were).
- Proper positioning ensures the force is applied evenly across the piston surface.
Step 4: Slowly Tighten the Tool
- Turn the handle or ratchet to gradually push the piston back in.
- Rapid force can damage seals or cause uneven retraction. Controlled pressure keeps everything aligned.
Step 5: Monitor Brake Fluid Level
- Keep an eye on the brake fluid reservoir under the hood.
- As the piston retracts, fluid is pushed back into the reservoir; it can overflow if already full.
Step 6: Fully Retract the Piston
- Continue until the piston is flush with the calliper housing.
- This ensures enough clearance for new pads and proper reassembly.
How to Compress a Brake Calliper Without a Tool
It is entirely possible to compress a brake calliper without a tool. However, it is important to note that it is definitely harder and requires more care.
It is also more demanding in terms of physical effort, and there is a greater risk of uneven pressure or slipping. That said, if you’re careful, it’s still doable.
Step-by-Step: Without a Compressor Tool
Step 1: Remove the Wheel and Access the Calliper
- Same as before; lift the car and remove the wheel.
- You need clear access before applying force.
Step 2: Leave One Old Brake Pad in Place
- Keep one worn pad against the piston.
- It helps distribute force evenly and protects the piston surface from damage.
Step 3: Use a C-Clamp or Similar Tool
- Position a C-clamp over the calliper and pad, with one end on the back of the calliper and the other on the pad.
- It mimics the function of a compressor tool by applying inward pressure.
Step 4: Tighten the Clamp Slowly
- Gradually tighten the clamp to push the piston inward.
- Just like with a proper tool, controlled pressure prevents damage and keeps the piston aligned.
Step 5: Check Brake Fluid Level
- Monitor the reservoir as the piston retracts.
- Fluid displacement still occurs, and overflow is still a risk.
Step 6: Fully Retract the Piston
- Continue until the piston is fully seated.
- Ensures proper fit for new pads and avoids reassembly issues.
Compressing Brake Callipers: With vs Without a Compressor Tool
| Factor | With Compressor Tool | Without Tool |
| Ease of Use | Very easy | More effort required |
| Pressure Control | Even and precise | Can be uneven |
| Risk of Damage | Low | Moderate if not careful |
| Speed | Faster | Slower |
| Cost | Requires purchase | Uses common tools |
| Versatility | Works on many calipers | Limited flexibility |
What to Look for in a Brake Calliper Compressor Tool
If you plan on doing brake work more than once, a proper tool is worth it. The key is to get a unit that is compatible, good quality, has multiple adapters, and is easy to operate.
- Compatibility: Some calipers (especially rear ones) require a wind-back tool instead of a simple press. Make sure the kit supports your vehicle type.
- Build quality: Look for steel construction with smooth threading and durable plates. A cheap tool can slip or wear out quickly.
- Multiple adapters: A good kit includes different plates and adapters so you can use it across multiple vehicles.
- Ease of operation: Tools with ratcheting mechanisms or ergonomic handles make the job quicker and less tiring.
Orion Motor Tech's 24-piece brake calliper compression tool set includes 2 retaining plates, 2 thrust bolt assemblies, 2 brake calliper hangers, and 18 adapters, easily servicing your brakes without damage.
This brake calliper tool kit includes a wide range of adapters to fit most vehicles, including hundreds of American, Japanese, and European models, fully covering your brake servicing needs. Crafted from heavy-duty 1045 steel, this calliper piston compressor tool set offers exceptional strength and durability, with a powder coating for enhanced wear and corrosion resistance.
Final Thoughts on Compressing Brake Callipers
Compressing a brake calliper is a straightforward job, but it’s one where technique matters.
Using a compressor tool gives you better control, reduces risk, and makes the process smoother overall. Going without one is possible, but it requires more care and effort.
Either way, the key is to apply slow, even pressure and understand why each step matters. Do that, and you’ll not only get the job done, but you’ll do it right.
