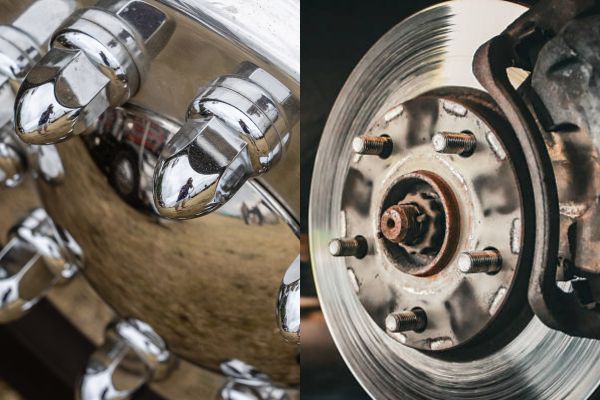

Lug Studs vs Lug Nuts: What's the Difference and Why It Matters

At first glance, lug studs and lug nuts might seem like they are the same thing, just have some slight differences in design. However, even though they belong to the same system, lug studs and lug nuts play completely different roles. Also, failing to identify the differences between the two can lead to loose wheels, damaged hubs, or serious safety risks.

Not only does it suffice to learn the differences between lug studs and lug nuts, but it is also important to understand how they work together. In this article, we will walk you through everything you need to know about lug studs vs lug nuts.

What are Lug Studs?

Lug studs are threaded metal rods permanently mounted into the wheel hub or brake rotor. They stick, and their role is to provide the anchoring points for the wheel.

Despite the common misconceptions, lug studs aren’t the ones that “carry” the vehicle’s weight. They simply allow lug nuts to clamp the wheel tightly against the hub. Most cars and trucks use lug studs because they simplify wheel installation and ensure consistent alignment.

What are Lug Nuts?

Lug nuts are internally threaded fasteners that screw onto lug studs. When tightened to the correct torque, they create the clamping force that secures the wheel to the hub. Depending on the wheel type, there are also different lug nuts: conical (tapered), ball-seat, and flat-seat. To ensure the proper load distribution and safety, make sure to use the correct lug nut type.

Lug Studs vs Lug Nuts: Key Differences

Lug nuts and lug studs differ mainly in function, threads (interior or exterior), installation, and load role. To help you understand the differences between lug studs and lug nuts, here is a brief overview:

Lug studs are permanent, externally threaded bolts that stick out from the wheel hub. They act as stationary mounting points.

As such, they allow you to hang the wheel for alignment. Their main job is to provide tension, but they can snap or stretch if you tighten them too much.

Lug nuts are removable fasteners with internal threads that screw onto the studs. They apply the actual clamping force that locks the wheel to the car. Because they are removable, they can be easily replaced, but they may loosen or strip if you use the wrong type or size.

How Lug Studs and Lug Nuts Work Together

When you tighten lug nuts, the stud stretches slightly, similar to a spring. That small amount of stretch creates clamping force, which presses the wheel face firmly against the wheel hub. As a result, everything stays in place, regardless of shear load.

Clamping force is the tension created when the lug nut is tightened. Shear load describes the sideways forces generated by vehicle weight, braking, and cornering. A properly torqued wheel depends almost entirely on friction between the wheel and the hub to resist these shear forces. The studs are not designed to carry shear loads directly.

Still, many drivers assume that lug studs physically support the wheel, but that is not how the system works. The wheel stays in place because friction from the clamping force holds it there. The studs only exist to maintain that force. If lug nuts loosen and there is no friction, the studs are suddenly forced to handle shear loads. This can cause them to bend or snap.

Also, this is why wheels can come loose when lug nuts are improperly tightened, even if the studs have no damage. Torque specifications ensure there is enough clamping force to prevent wheel movement. They also prevent over-stretching the studs and ensure the load is evenly distributed.

Under-torquing causes movement and gradual loosening. Over-torquing can weaken or permanently stretch studs, which can also lead to failure. That’s why you should always use a calibrated torque wrench and tighten it in a star pattern.

Lug Studs vs Lug Nuts vs Lug Bolts

Some cars and vehicles use lug bolts instead of studs and nuts. With that being said, let’s take another overview of some main differences:

Orionmotors Best Lug Nuts

1. M14x1.5 Wheel Lug Nuts w 60 Degree Conical Tapered Acorn Seat

This package includes 24 Orion Motor Tech M14 x 1.5 lug nuts with a 60° conical seat (1.9" long by 0.87" wide) and instructions for use to get all your wheels back on the road as soon as possible. The 14mm x 1.5 wheel nuts fit 3/4" and 19mm hex wrenches to work on a wide range of models (see above for full and exact fitment information).

These cone lug nuts are each made from a single piece of premium Q235 steel that has been cold-forged and heat-treated for superior strength and longevity; their black-oxide coating further improves their corrosion resistance.

2. M12x1.5 Spline Wheel Acorn Lug Nuts with 60° Cone Seat

These M12x1.5 spline wheel nuts with 60-degree conical seat (1.38" long by 0.8" wide), a socket, and instructions for use to get all your wheels back on the road as soon as possible.
The 12mm x 1.5 wheel nuts fit 3/4" and 19mm hex wrenches to work on a wide range of models (see above for full and exact fitment information)

The 60° cone seat lug nuts are each made from a single piece of premium A3 steel that has been cold-forged and heat-treated for superior strength and longevity; their black-oxide coating further improves their corrosion resistance.

Conclusion: Why the Difference Matters for Safety

Lug studs and lug nuts play different but equally important roles. Studs provide the structure for tension, while lug nuts apply the force that keeps the wheel securely clamped. However, for everything to work properly, you need to ensure a proper torque, the correct fastener type, and regular inspection.

Always recheck torque after wheel installation, replace damaged components promptly, and never mix incompatible lug hardware. Safe maintenance equals safe driving, which should always be your top priority.

You might also be interested in coned vs flanged lut nuts.
