2 Stage Vacuum Pump, 9 cfm 3/4 hp HVAC Rotary Vane Vacuum Pump with 1.5 Micron Ultimate Vacuum

In stock
Regular price $209.99

Warranty & Support

  • SKU VPH-E001-01
  • Returnable 30-Day
  • Warranty 1-Year
  • Shipping Free
  • User Manual Download

Specification

  • Material: Aluminum, Copper, Rubber
  • Flow Rate (FAD): 9 cfm (15.3 m3/h)
  • Ultimate Vacuum: 1.5 Microns (0.2 Pa)
  • Rated Power: 3/4 hp (558W)
  • Rated Speed: 1720 rpm
  • Duty Cycle: 2 Hours
  • Port Sizes: 1/4, 3/8, & 1/2 in.
  • Oil Capacity: 0.5 qt. (500 mL)
  • Max. Noise Level: 70 dB
  • Working Temperature Range: 32-122°F (0-50°C)
  • Power Cable Length: 5 ft. (1.5 m)

Package List

  • 1x Vacuum Pump
  • 1x Vacuum Pump Oil
  • 1x Pair of Work Gloves
  • 1x Raw Tape
  • 1x Instructions

Ready to buy or need advice?

We're here to help! Our sales team offers personalized consultations, and expert advice to help you make the right choice.

Get in Touch Today

About this item

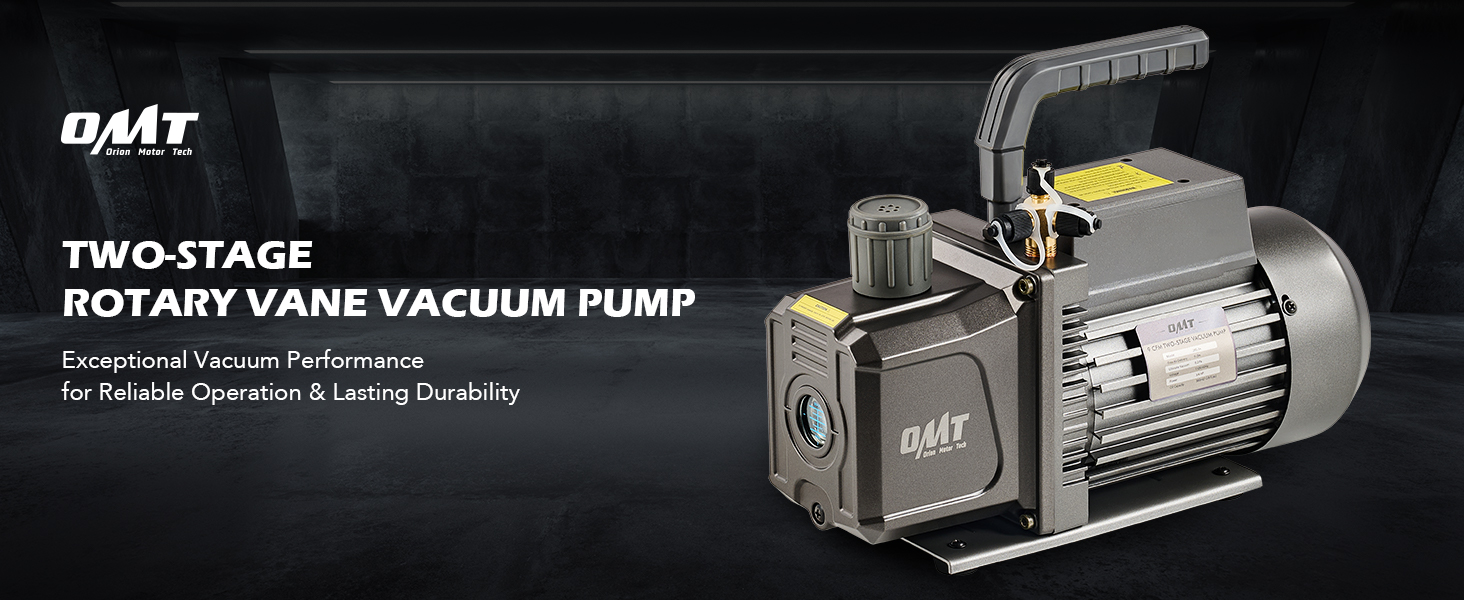

  • Stronger Motor, Deeper Vacuum: This 3/4 hp two-stage rotary vane vacuum pump by Orion Motor Tech evacuates air and gases efficiently, drawing the system down to as low as 1.5 microns (0.2 Pa) for quick and easy servicing of AC systems employing R12, R22, R134a, R410a refrigerants.
  • High Pumping Efficiency: Equipped with a 3/4 hp copper motor, this AC vacuum pump ensures efficiency with its impressive 9 cfm rate, providing a faster & deeper evacuation process. Its 2-hour duty cycle allows smooth operation in temperatures ranging from 32 to 122°F.

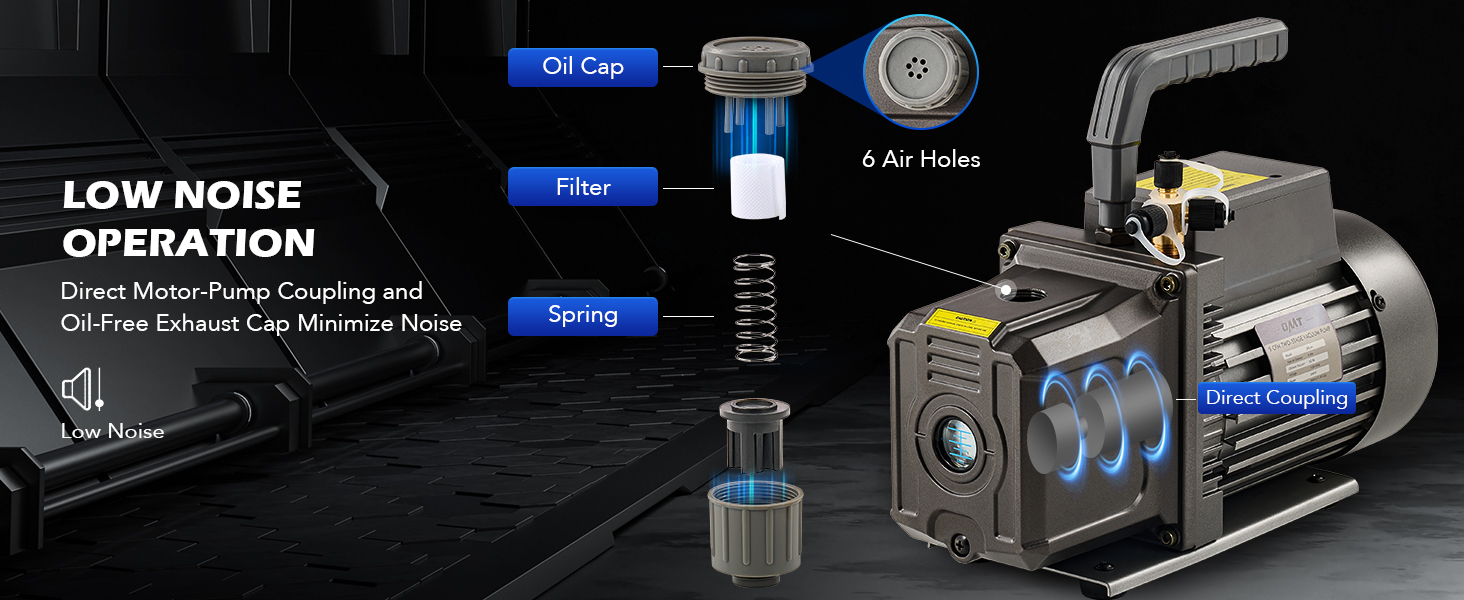

  • Low Noise Operation: The direct motor-pump coupling improves motor power transfer while maintaining low noise levels. The specialized exhaust port cap not only effectively filters but also reduces noise, consistently keeping it below 70 dB.

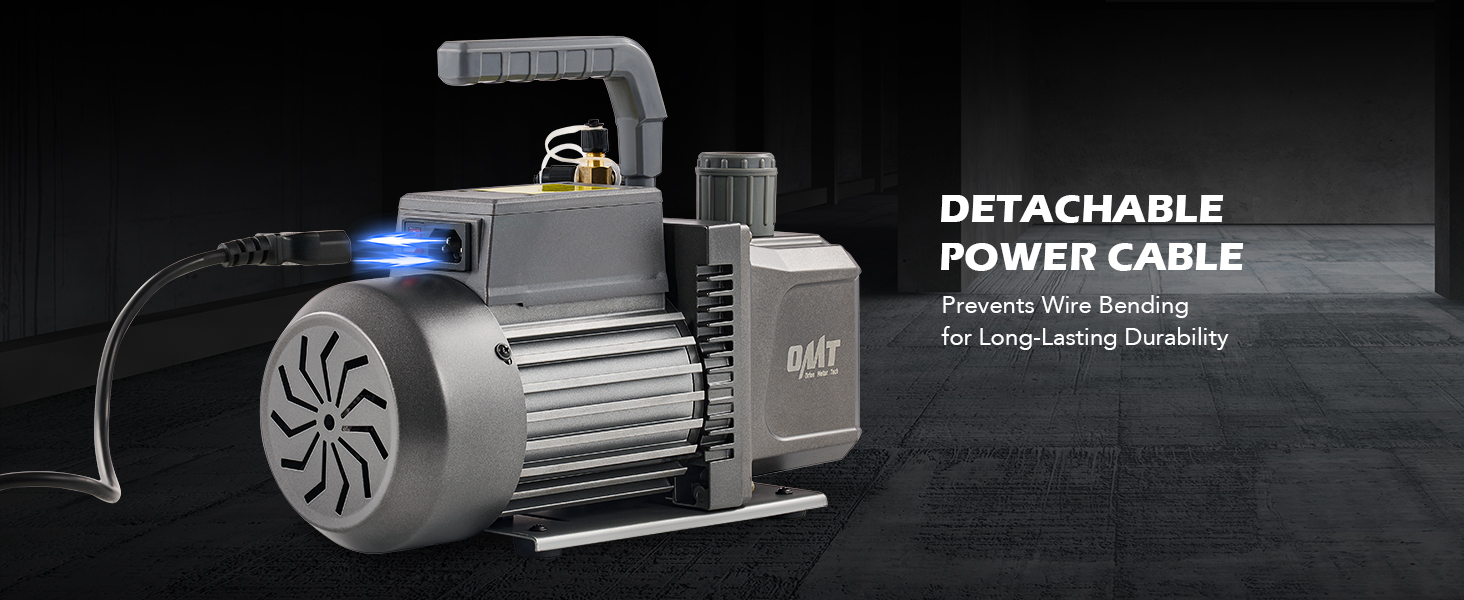

  • User-Friendly Designs: The detachable power cable prevents wire bending for long-lasting durability. The 12.8 fl. oz. oil reservoir includes a convenient sight glass and scale for oil level monitoring and timely refills. Its nonslip handle keeps everything easily portable for transport or storage between jobs.

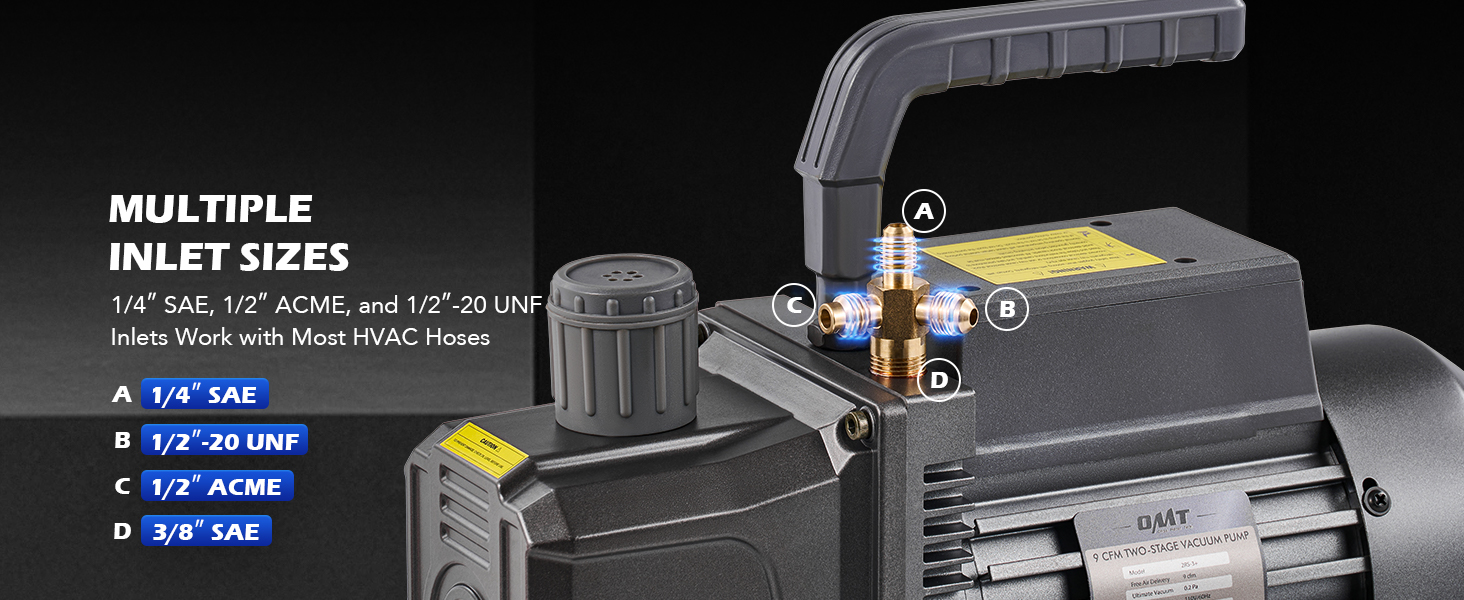

  • Wide Application: Compatible with 1/4", 3/8", and 1/2" hoses, this HVAC vacuum pump is well-suited for a range of applications, from HVAC servicing to vacuum oven, vacuum drying, wood stabilization, vacuum hold down table industrial applications.

Specification

  • Material: Aluminum, Copper, Rubber
  • Flow Rate (FAD): 9 cfm (15.3 m3/h)
  • Ultimate Vacuum: 1.5 Microns (0.2 Pa)
  • Rated Power: 3/4 hp (558W)
  • Rated Speed: 1720 rpm
  • Duty Cycle: 2 Hours
  • Port Sizes: 1/4, 3/8, & 1/2 in.
  • Oil Capacity: 0.5 qt. (500 mL)
  • Max. Noise Level: 70 dB
  • Working Temperature Range: 32-122°F (0-50°C)
  • Power Cable Length: 5 ft. (1.5 m)

Package List

  • 1x Vacuum Pump
  • 1x Vacuum Pump Oil
  • 1x Pair of Work Gloves
  • 1x Raw Tape
  • 1x Instructions
